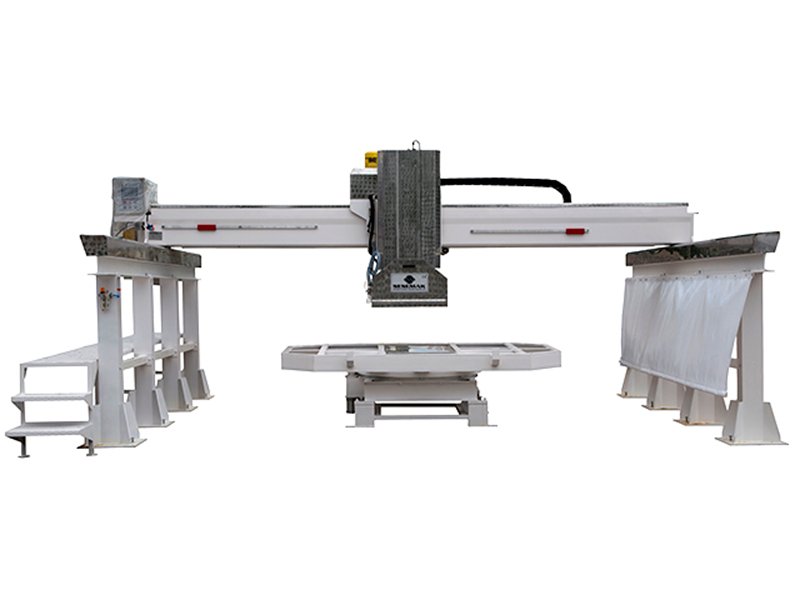

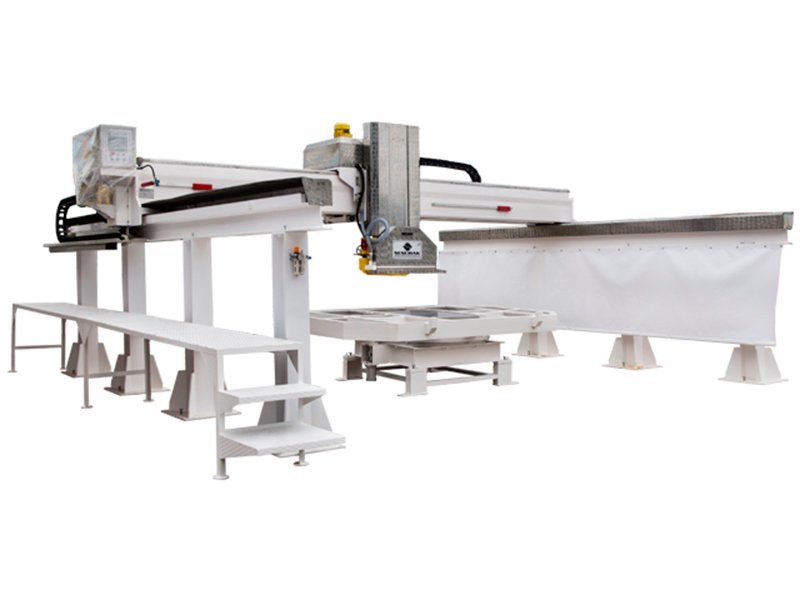

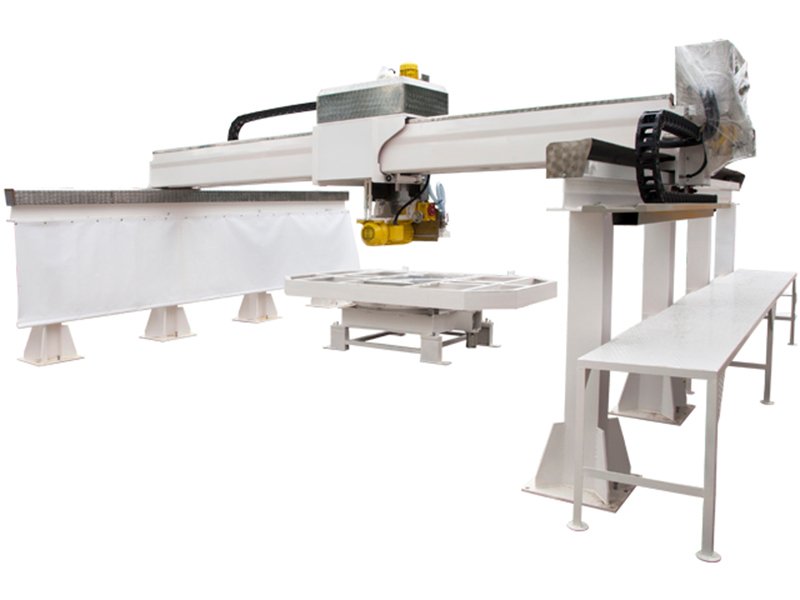

KK 700 BRIDGE TO CUTTING

TECHNICAL SPECIFICATION

...........................................................................................................................................................................................

Main Engine Power

22 kw . 1500 d./dk

...........................................................................................................................................................................................

Beam motion engine power

0,75 kw . 1000 d/dk

...........................................................................................................................................................................................

Saw up and down movement engine power

0,75 kw. 1000 d/dk

...........................................................................................................................................................................................

Cutter carriage engine power

1,5 kw 1500 d/dk

...........................................................................................................................................................................................

Operating system

PLC controlled screen touch system

...........................................................................................................................................................................................

Saw diameter

700 mm

...........................................................................................................................................................................................

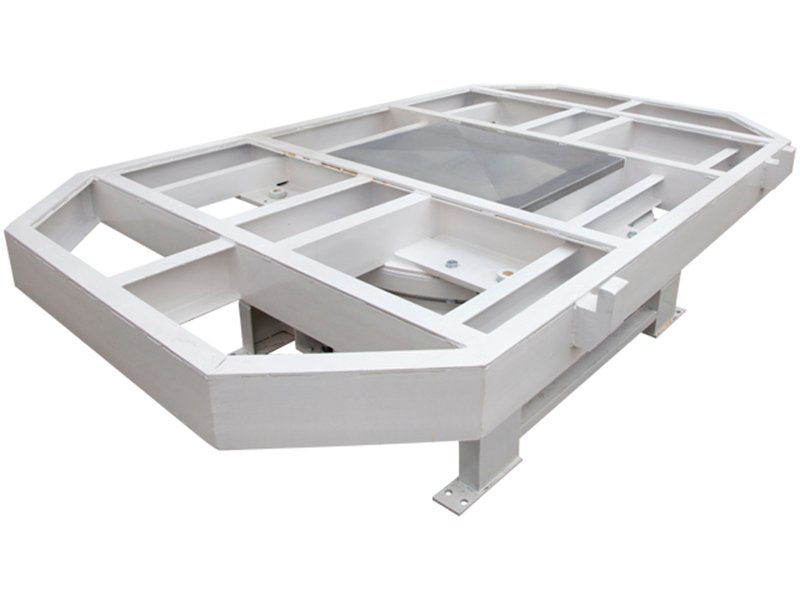

Rotary table angle

360° (45° x 8)

...........................................................................................................................................................................................

Table fixing

Magnetic sensor warning, pneumatic supported locking system

...........................................................................................................................................................................................

Maximum Cutting

200x2000x3400 mm

...........................................................................................................................................................................................

Transport table

2

...........................................................................................................................................................................................

Tilting table

1 x hidrolik

...........................................................................................................................................................................................

Machine dimensions

3000x5300x6450 mm

...........................................................................................................................................................................................

Max. water enquirement

35 lt./dk

...........................................................................................................................................................................................

Total electric power

25 kw

...........................................................................................................................................................................................

Total weight

6800 kg

...........................................................................................................................................................................................

Saw angle

0°-45°
