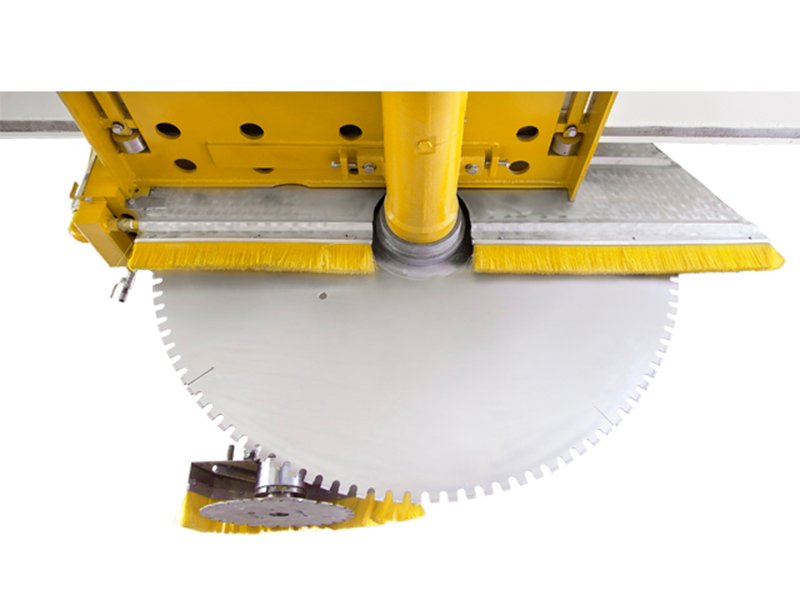

Vertical saw Diameter

Ø1000- Ø1750

...........................................................................................................................................................................................

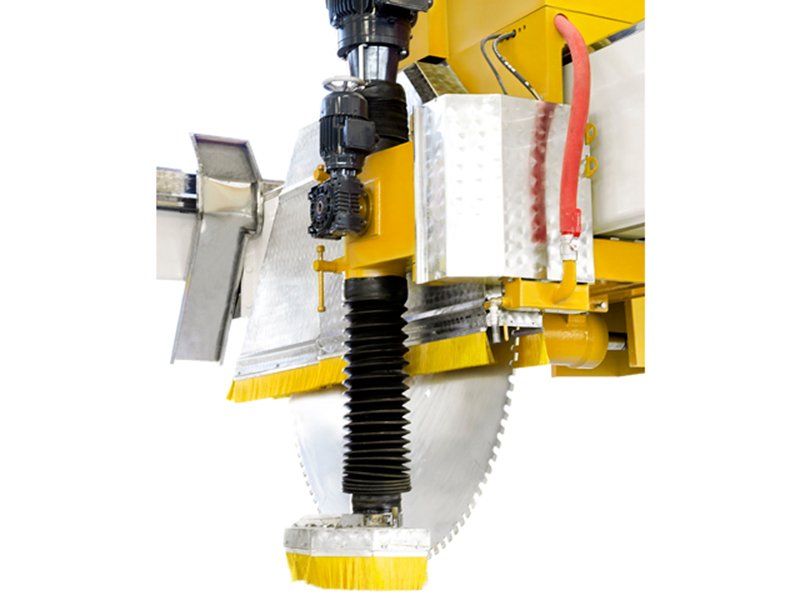

Horizontal Saw Diameter

Ø450- Ø650

...........................................................................................................................................................................................

Vertical Saw Engine Power

110 kw . (150Hp)-1500 d/dk

...........................................................................................................................................................................................

The Horizontal Saw Engine Power

15 kw . (20Hp)-3000 d/dk

...........................................................................................................................................................................................

Beam Motion Engine Power

0.55 kw . (1.5 Hp)-1500 d/dk

...........................................................................................................................................................................................

Cutter Carriage movement engine power

2.2 kw . (3Hp)-1500 d/dk

...........................................................................................................................................................................................

Beam up-down motion engine power

2.2 kw. (3Hp)-1500 d/dk

...........................................................................................................................................................................................

The horizontal Saw Up-down Motion Engine Power

0.55 kw. (1.5Hp)-900 d/dk

...........................................................................................................................................................................................

Block Car Engine Power

1.5 kw . (2Hp)-1500 d/dk

...........................................................................................................................................................................................

Max. Block Dimensions

3500x2400x2200 mm

...........................................................................................................................................................................................

Max. Water requirement

112lt./dk

...........................................................................................................................................................................................

Total Electric Power

132 kw.

...........................................................................................................................................................................................

Machine Weight

15000 kg.

...........................................................................................................................................................................................

Cutting Direction

Left or Right

...........................................................................................................................................................................................

Block Car Working type

Vertical or Horizontal

Working specification

PLC controlled, semi-automatic (hand remote controlled) and classic system controlled
